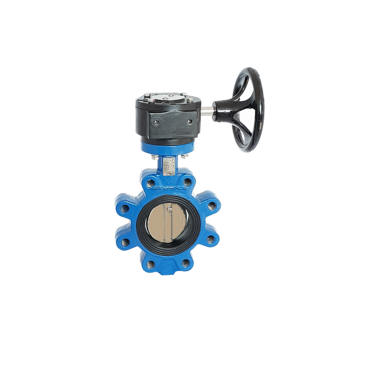

Butterfly valve LUG gearbox GGG40/alubronze/NBR JIS 16/20K
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
JIS-16K
NBR
| Model: | Lug type | Material body: | Nodulair cast iron GGG40 |
| Connection: | LUG JIS 16/20K | Material Disc: | Aluminium bronze |
| Pressure: | 16K | Material seat: | NBR |
| Temperature: | 80°C | Operation: | Gearbox |
| Use: Maritime systems, seawater, ballast systems, engine rooms, lens systems, |
| SKU | MXT-572316K000 |
|---|
| Body material | Ductile iron GGG40. |
|---|---|
| Disc / Ball / Wedge | Aluminium-Bronze |
| Seat | NBR |
